MC100ELT24 - TTL to Differential ECL Translator

Product Overview

Motorola

Part number	MC100ELT24
Manufacturer	Motorola
File Size	81.70 KB
Description	TTL to Differential ECL Translator
Datasheet	MC100ELT24 Datasheet

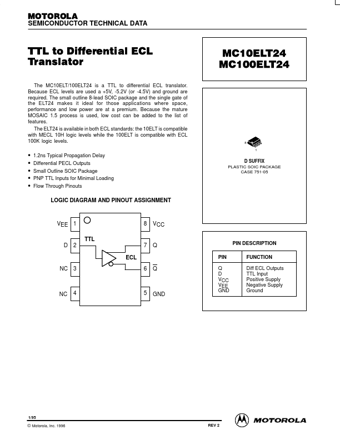

Additional preview pages of the MC100ELT24 datasheet.

PIN Q D VCC VEE GND FUNCTION Diff ECL

The ELT24 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
1.2ns Typical Propagation Delay.
Differential PECL Outputs.
Small Outline SOIC Package.
PNP TTL Inputs for Minimal Loading.
Flow Through Pinouts LOGIC.
