MC100ELT20 - TTL to Differential PECL Translator

Product Overview

Motorola

Part number	MC100ELT20
Manufacturer	Motorola
File Size	80.11 KB
Description	TTL to Differential PECL Translator
Datasheet	MC100ELT20 Datasheet

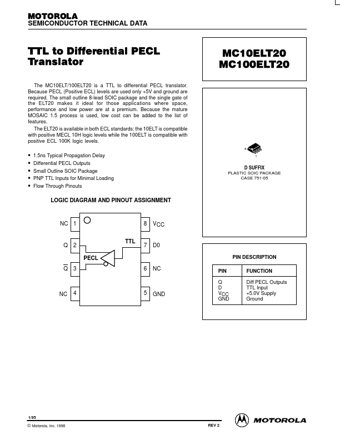

Additional preview pages of the MC100ELT20 datasheet.

PIN Q D VCC GND

The ELT20 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
1.5ns Typical Propagation Delay.
Differential PECL Outputs.
Small Outline SOIC Package.
PNP TTL Inputs for Minimal Loading.
Flow Through Pinouts LOGIC.
