BAW56WT1 Dual Switching Diode

BAW56WT1 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BAW56WT1/D Dual Switching Diode CATHODE 1 3 ANODE 2 BAW56WT1 Motorola Preferred Devic.

BAW56WT1 Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection 0.025 0.65 interface between the board and the package. With the correct pad geometry, the packages will self align when sub

📥 Download Datasheet

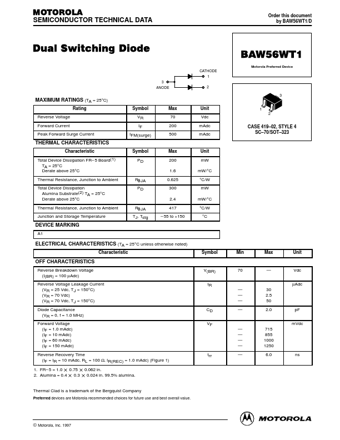

Preview of BAW56WT1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAW56WT1
Manufacturer
Motorola
File Size
94.99 KB
Datasheet
BAW56WT1_MotorolaInc.pdf
Description
Dual Switching Diode
