BAW56LT1 Monolithic Dual Switching Diode Common Anode

BAW56LT1 Description

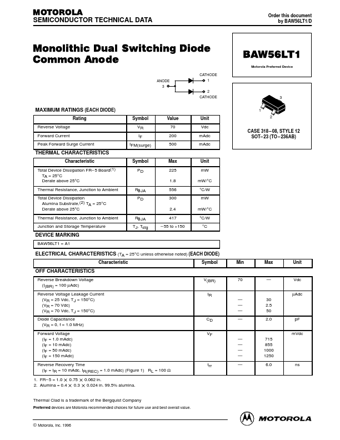

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BAW56LT1/D Monolithic Dual Switching Diode Common Anode ANODE 3 CATHODE 1 2 CATHODE B.

BAW56LT1 Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection interface between the board and the package. With the correct pad geometry, the packages will self align when subjected to a

📥 Download Datasheet

Preview of BAW56LT1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAW56LT1
Manufacturer
Motorola
File Size
82.32 KB
Datasheet
BAW56LT1_MotorolaInc.pdf
Description
Monolithic Dual Switching Diode Common Anode
