BAW56W SURFACE MOUNT SWITCHING DIODES

PANJIT

BAW56W Description

BAL99W, BAW56W, BAV70W, BAV99W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts POWER 200mWatts PACKAGE .

BAW56W Features

* Fast switching speed.
* Surface mount package Ideally Suited for Automatic insertion
* Electrically Identical to Standard JEDEC

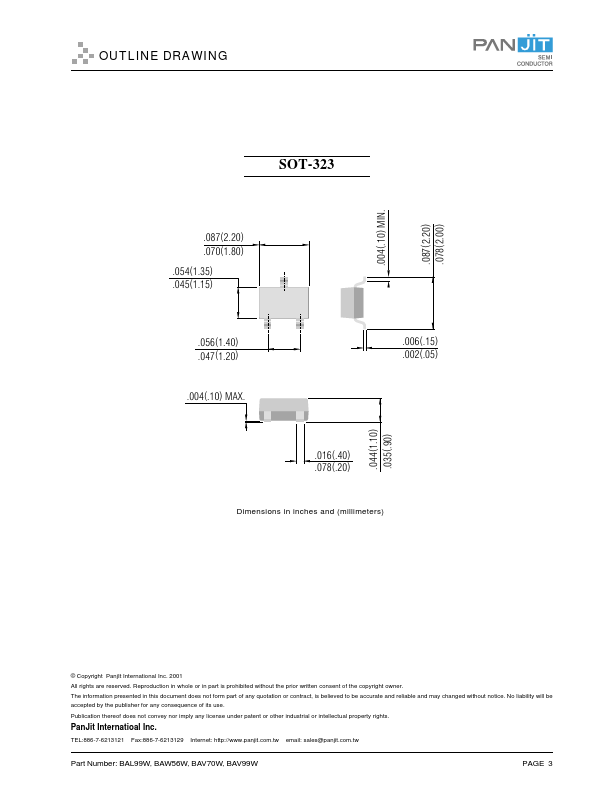

* High Conductance MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Ma

📥 Download Datasheet

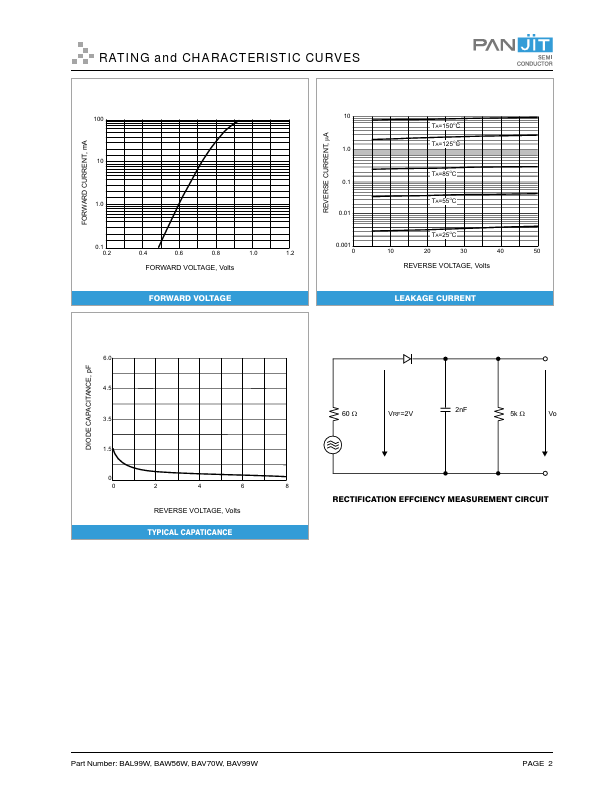

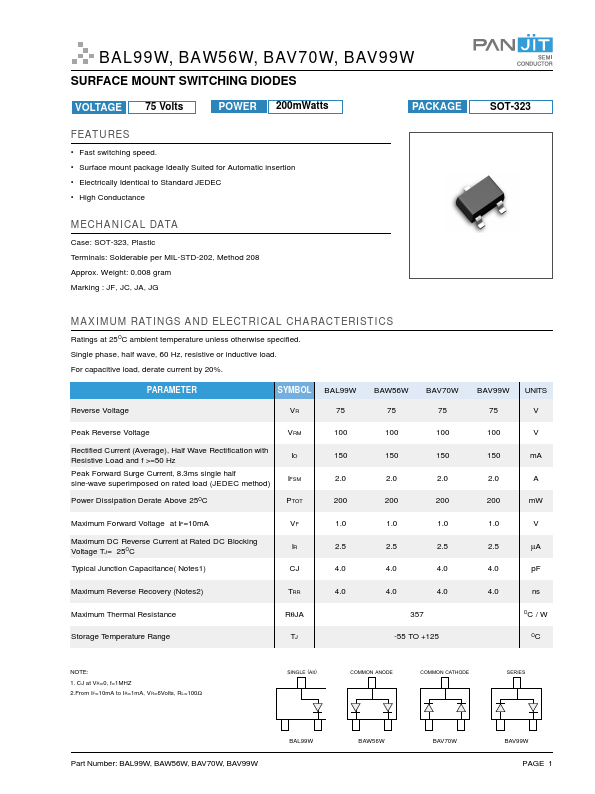

BAW56W Datasheet Preview — Preview of BAW56W PDF

Datasheet Details

Part number: BAW56W
Manufacturer: PANJIT
File Size: 105.42 KB
Datasheet: BAW56W-PANJIT.pdf
Description: SURFACE MOUNT SWITCHING DIODES
