2N3053, GENERAL PURPOSE TRANSISTOR

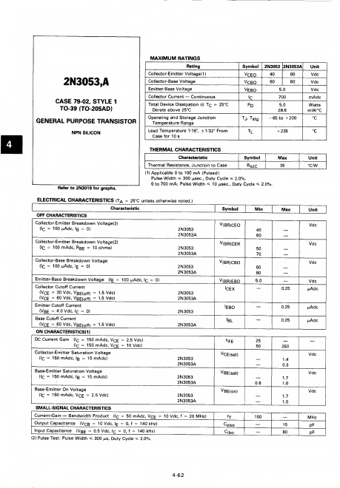

2N3053,A CASE 79-02, STYLE 1 TO-39 (TO-205AD) GENERAL PURPOSE TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage(l) Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Lead Temperature 1/16", ±1/32" From Case for 10 s Symbol vCEO VCBO VEBO "C PD TJ' Tstg 2N3053 2N3053A 40 60 60 80 5.0 700 5.0 28.6 -65 to +200 Unit Vdc Vdc Vdc mAdc Watts mW/
