MH88634B - Central Office Interface Circuit Advance Information

Product Overview

Mitel Networks

Datasheet Details

Part number	MH88634B
Manufacturer	Mitel Networks
File Size	57.98 KB
Description	Central Office Interface Circuit Advance Information
Datasheet	MH88634B Datasheet

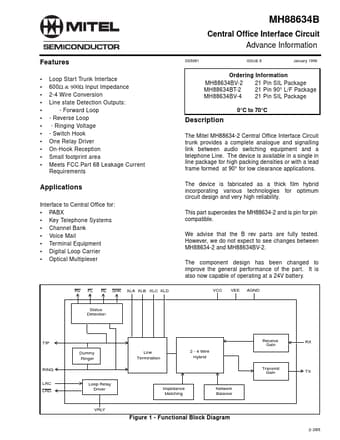

Additional preview pages of the MH88634B datasheet.

Product details

Description

The Mitel MH88634-2 Central Ofﬁce Interface Circuit trunk provides a complete analogue and signalling link between audio switching equipment and a telephone Line.

Features

Loop Start Trunk Interface 600Ω & 900Ω Input Impedance 2-4 Wire Conversion Line state Detection Outputs: - Forward Loop - Reverse Loop - Ringing Voltage - Switch Hook One Relay Driver On-Hook Reception Small footprint area Meets FCC Part 68 Leakage Current Requirements DS5061 ISSUE 6 January 1999 Ordering Information MH88634BV-2 21 Pin SIL Package MH88634BT-2 21 Pin 90° L/F Pa.
