MH88632B - Central Office Interface Circuit Preliminary Information

Product Overview

Mitel Networks

Datasheet Details

Part number	MH88632B
Manufacturer	Mitel Networks
File Size	95.40 KB
Description	Central Office Interface Circuit Preliminary Information
Datasheet	MH88632B Datasheet

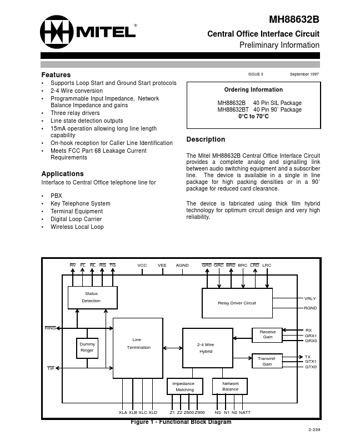

Additional preview pages of the MH88632B datasheet.

Product details

Description

The Mitel MH88632B Central Ofﬁce Interface Circuit provides a complete analog and signalling link between audio switching equipment and a subscriber line.

Features

Supports Loop Start and Ground Start protocols 2-4 Wire conversion Programmable Input Impedance, Network Balance Impedance and gains Three relay drivers Line state detection outputs 15mA operation allowing long line length capability On-hook reception for Caller Line Identiﬁcation Meets FCC Part 68 Leakage Current Requirements ISSUE 3 September 1997 Ordering Information MH88632B 40 Pin SIL Package MH88632BT 40 Pin.
