MH88631 - Central Office Interface (LS/GS) Preliminary Information

Product Overview

Mitel Networks

Datasheet Details

Part number	MH88631
Manufacturer	Mitel Networks
File Size	87.01 KB
Description	Central Office Interface (LS/GS) Preliminary Information
Datasheet	MH88631 Datasheet

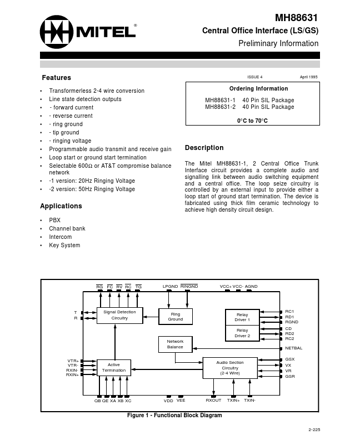

Additional preview pages of the MH88631 datasheet.

Product details

Description

The Mitel MH88631-1, 2 Central Office Trunk Interface circuit provides a complete audio and signalling link between audio switching equipment and a central office. PBX Channel bank Intercom Key System RG FC RV RC TG LPGND R

Features

Transformerless 2-4 wire conversion Line state detection outputs - forward current - reverse current - ring ground - tip ground - ringing voltage Programmable audio transmit and receive gain Loop start or ground start termination Selectable 600 Ω or AT&T compromise balance network -1 version: 20Hz Ringing Voltage -2 version: 50Hz Ringing Voltage ISSUE 4 April 1995 Ordering I.
