ML62242, ML62202 - Positive Voltage Regulator

The ML62242 by Minilogic Device is a Positive Voltage Regulator. Below is the official datasheet preview.

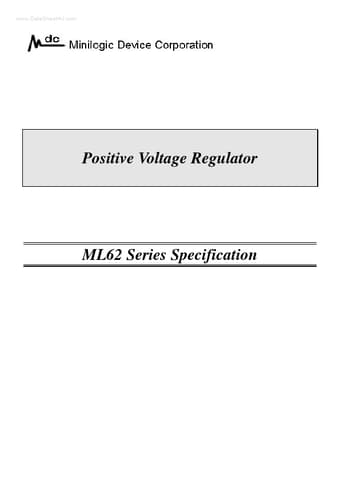

ML62242 Positive Voltage Regulator by Minilogic Device - Datasheet Preview — Official preview page of the **ML62242** Positive Voltage Regulator datasheet (Minilogic Device).

Datasheet Details

Part number	ML62242, ML62202
Manufacturer	Minilogic Device
File Size	533.69 KB
Description	Positive Voltage Regulator
Datasheet	ML62202_MinilogicDevice.pdf
Note	This datasheet PDF includes multiple part numbers: ML62242, ML62202. Please refer to the document for exact specifications by model.
Additional preview pages of the ML62242 datasheet.

ML62242 Product details

Description

v Block Diagram The ML62 is a group of positive voltage output, three-pin regulator which provides high output current even when the input/output voltage differential is small.The ML62 consists of a high-precision voltage reference, an error correction circuit, and a current limited output driver.v Absolute Maximum Ratings Parameter I

Features

l CMOS Low Power Consumption: Typical 3.3uA at Vout=5.0V l Output VoltageRange:2.0Vto6.0Vin0.1Vincrements l HighlyAccurate:OutputVoltage+2% l MaximumOutputCurrent:250mA (within the maximum power dissipation , Vout=5.0V) l SmallInput-Output VoltageDifferential: 0.12V at 100mA and 0.38V at 200mA l Inputstability:Typ.0.2%/V l PackageAvailable: SOT- 23(150mW), SOT- 89(500mW)&TO- 92 (300mW) v General.
