ML620Q133B - 16-bit micro controller

Download the ML620Q133B datasheet PDF (ML620Q131B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 16-bit micro controller.

Description

This LSI is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16/100 and integrated with rich peripheral functions such as the timer, PWM, comparator, voltage level supervisor, UART, I2C, and successive approximation type A/D converter.

Features

  • CPU.
  • 16-bit RISC CPU (CPU name: nX-U16/100).
  • Instruction system: 16-bit length instruction ‒ Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stac.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML620Q131B-LAPIS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML620Q133B
Manufacturer LAPIS
File Size 807.49 KB
Description 16-bit micro controller
Datasheet download datasheet ML620Q133B Datasheet

📁 Similar Datasheet

  • ML620Q151A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q152A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q153A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q154A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q155A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q156A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q157A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q158A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q159A - 16-bit micro controller (LAPIS Semiconductor)
  • ML620Q503 - Ultra Low Power 16-bit Microcontroller (LAPIS Semiconductor)
Other Datasheets by LAPIS

Full PDF Text Transcription

Click to expand full text

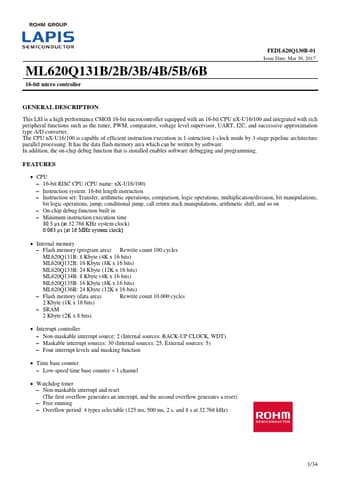

ML620Q131B/2B/3B/4B/5B/6B 16-bit micro controller FEDL620Q130B-01 Issue Date: Mar 30, 2017 GENERAL DESCRIPTION This LSI is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16/100 and integrated with rich peripheral functions such as the timer, PWM, comparator, voltage level supervisor, UART, I2C, and successive approximation type A/D converter. The CPU nX-U16/100 is capable of efficient instruction execution in 1-intruction 1-clock mode by 3-stage pipeline architecture parallel processing. It has the data flash memory area which can be written by software. In addition, the on-chip debug function that is installed enables software debugging and programming.
