HN16018CG, HN16012CG Datasheet - Mingtek

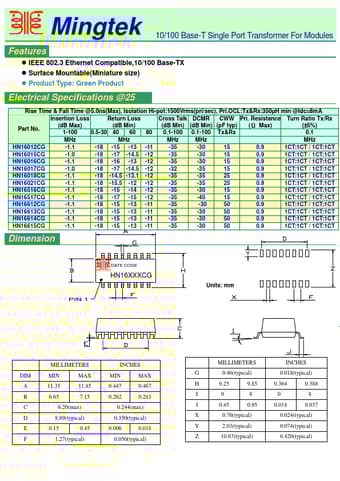

HN16018CG 10/100 Base-T Single Port Transformer

HN16018CG Features

* Electrical Specifications @25¢J 10/100 Base-T Single Port Transformer For Modules

* IEEE 802.3 Ethernet Compatible,10/100 Base-TX

* Surface Mountable(Miniature size)

* Product Type: Green Product Rise Time & Fall Time @5.0ns(Max), Isolation Hi-pot:1500Vrms(pri/sec), Pri.OCL:Tx&Rx:350µ

Datasheet Details

HN16018CG, HN16012CG

Mingtek

204.82 KB

10/100 base-t single port transformer.

This datasheet PDF includes multiple part numbers: HN16018CG, HN16012CG.
Please refer to the document for exact specifications by model.
