ICE20N170FP - N-Channel MOSFET

Micross Components

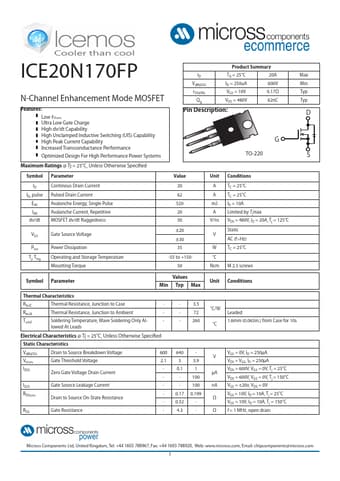

ICE20N170FP Datasheet Preview — Preview of ICE20N170FP PDF

Datasheet Details

Part number	ICE20N170FP
Manufacturer	Micross Components
File Size	965.51 KB
Description	N-Channel MOSFET
Datasheet	ICE20N170FP-MicrossComponentspdf

ICE20N170FP Product details

Description

TO-220 G Maximum Ratings @ Tj = 25°C, Unless Otherwise Specified Symbol Parameter Value Unit Conditions ID ID, pulse EAS IAR dv/dt Continous Drain Current Pulsed Drain Current Avalanche Energy, Single Pulse Avalanche Current, Repetitive MOSFET dv/dt Ruggedness VGS Ptot Tj, Tstg Gate Source Voltage Power Dissipation Operating and Storage Temperature Mounting Torque 20 62 520 20 50 ±20 ±30 35 -55 to +150 50 A A mJ A V/ns V W °C Ncm TC = 25°C TC = 25°C ID = 10A Limited by Tjmax VDS =

Features

r Low DS(on) Ultra Low Gate Charge High dv/dt Capability High Unclamped Inductive Switching (UIS) Capability High Peak Current Capability Increased Transconductance Performance Optimized Design For High Performance Power Systems Product Summary ID V(BR)DSS rDS(ON) Qg TA = 25°C ID = 250uA VGS = 10V VDS = 480V 20A 600V 0.17Ω 62nC Pin.
