ZL30771 IEEE 1588 & Synchronous Ethernet Packet Clock Network Synchronizers

ZL30771 Description

.

ZL30771 Features

* One, Two or Three DPLL Channels
* Packet and/or physical-layer frequency, phase and time synchronization
* Physical-layer compliance with ITU-T G.8262, G.8261.1, G.813, G.812, Telcordia GR-1244, GR-253
* Packet-timing compliance with ITU-T G.8261, G.8263, G.8273.2 (

ZL30771 Applications

* with sub100ns time/phase alignment requirements
* Programmable bandwidth, 0.1mHz to 470Hz
* Hitless reference switching and mode switching
* High-resolution holdover averaging
* Programmable phase slope limit for transients, downto 1 ns/s
* Per-DPLL phase adju

📥 Download Datasheet

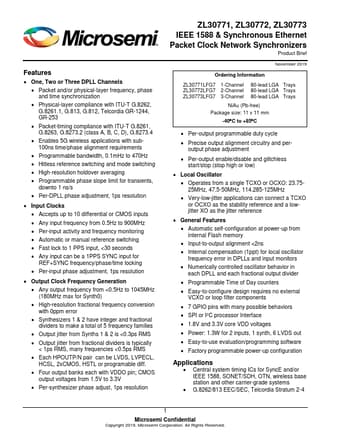

Preview of ZL30771 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZL30771
Manufacturer
Microsemi ↗
File Size
356.56 KB
Datasheet
ZL30771-Microsemi.pdf
Description
IEEE 1588 & Synchronous Ethernet Packet Clock Network Synchronizers
