MB3505W - 35 Amp Single Phase Bridge Rectifier

Product Overview

Microsemi

📥 Download Datasheet

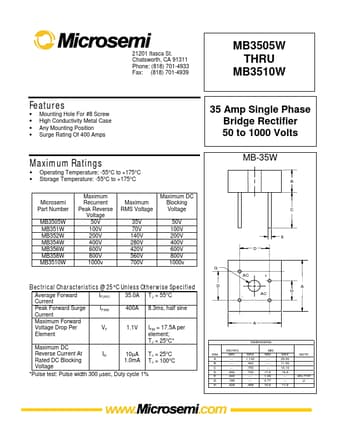

MB3505W 35 Amp Single Phase Bridge Rectifier by Microsemi - Datasheet Preview — Datasheet preview – MB3505W

Datasheet Details

Part number	MB3505W
Manufacturer	Microsemi
File Size	126.00 KB
Description	35 Amp Single Phase Bridge Rectifier
Datasheet	MB3505W Datasheet
Additional preview pages of the MB3505W datasheet.

Product details

Features

Mounting Hole For #8 Screw.
High Conductivity Metal Case.
Any Mounting Position.
Surge Rating Of 400 Amps 35 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Maximum Ratings.
Operating Temperature: -55°C to +175°C.
Storage Temperature: -55°C to +175°C Microsemi Part Number MB3505W MB351W MB352W MB354W MB356W MB358W MB3510W Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000v Maximum RMS Voltage 35V 70V 140V 280V 4.
