MB352W - 35 Amp Single Phase Bridge Rectifier

Product Overview

Microsemi

📥 Download Datasheet

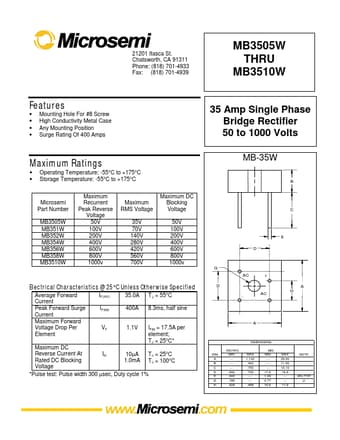

MB352W 35 Amp Single Phase Bridge Rectifier by Microsemi - Datasheet Preview — Datasheet preview – MB352W

Datasheet Details

Part number	MB352W
Manufacturer	Microsemi
File Size	126.00 KB
Description	35 Amp Single Phase Bridge Rectifier
Datasheet	MB352W Datasheet
Note	This datasheet PDF includes multiple part numbers: MB352W, MB3505W. Please refer to the document for exact specifications by model.
Additional preview pages of the MB352W datasheet.

Product details

Features

Mounting Hole For #8 Screw.
High Conductivity Metal Case.
Any Mounting Position.
Surge Rating Of 400 Amps 35 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Maximum Ratings.
Operating Temperature: -55°C to +175°C.
Storage Temperature: -55°C to +175°C Microsemi Part Number MB3505W MB351W MB352W MB354W MB356W MB358W MB3510W Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000v Maximum RMS Voltage 35V 70V 140V 280V 4.
