MB3516A - RGB Encoder

Product Overview

Fujitsu

📥 Download Datasheet

MB3516A RGB Encoder by Fujitsu - Datasheet Preview — Datasheet preview – MB3516A

Datasheet Details

Part number	MB3516A
Manufacturer	Fujitsu
File Size	190.99 KB
Description	RGB Encoder
Datasheet	MB3516A Datasheet

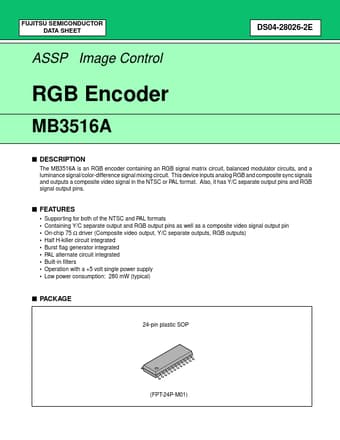

Additional preview pages of the MB3516A datasheet.

Product details

Description

The MB3516A is an RGB encoder containing an RGB signal matrix circuit, balanced modulator circuits, and a luminance signal/color-difference signal mixing circuit.

Features

Supporting for both of the NTSC and PAL formats Containing Y/C separate output and RGB output pins as well as a composite video signal output pin On-chip 75 Ω driver (Composite video output, Y/C separate outputs, RGB outputs) Half H-killer circuit integrated Burst flag generator integrated PAL alternate circuit integrated Built-in filters Operation with a +5 volt single power supply Low power consumption: 2.
