GBPC3506A, GBPC3502A Glass Passivated Single Phase Bridge Rectifiers

Microsemi

Description

GBPC3502A thru GBPC3510A Glass Passivated Single Phase Bridge Rectifiers Reverse Voltage 200 to 1000V Forward Current 35 Amp Circuit - .

📥 Download Datasheet

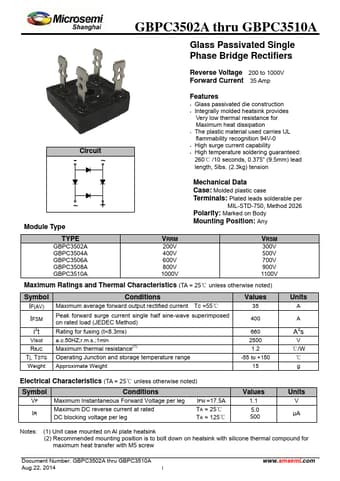

GBPC3506A Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC3506A, GBPC3502A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBPC3506A, GBPC3502A
Manufacturer: Microsemi ↗
File Size: 142.36 KB
Datasheet: GBPC3502A-Microsemi.pdf
Description: Glass Passivated Single Phase Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: GBPC3506A, GBPC3502A.
Please refer to the document for exact specifications by model.

Features

* y Glass passivated die construction y Integrally molded heatsink provides Very low thermal resistance for Maximum heat dissipation y The plastic material used carries UL flammability recognition 94V-0 y High surge current capability y High temperature soldering guaranteed: 260℃ /10 seconds, 0.375” (
