GBPC3510A - Glass Passivated Single Phase Bridge Rectifiers

Download the GBPC3510A datasheet PDF. This datasheet also covers the GBPC3502A variant, as both devices belong to the same glass passivated single phase bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • y Glass passivated die construction y Integrally molded heatsink provides Very low thermal resistance for Maximum heat dissipation y The plastic material used carries UL flammability recognition 94V-0 y High surge current capability y High temperature soldering guaranteed: 260℃ /10 seconds, 0.375” (9.5mm) lead length, 5lbs. (2.3kg) tension +~ ~ Module Type Mechanical Data Case: Molded plastic case Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Marked on Body Mountin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC3502A-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC3510 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC3510 Single-Phase 35.0A Glass Passivated Bridge Rectifier Sangdest Microelectronics
GBPC3510 35A GLASS PASSIVATED BRIDGE RECTIFIER Diodes
GBPC3510 Glass Passivated Bridge Rectifiers Eris
GBPC3510 Single Phase Bridge Rectifier MEI SEMI

Other Datasheets by Microsemi (Microchip)

Part Number Description
GBPC3502A Glass Passivated Single Phase Bridge Rectifiers
GBPC3504A Glass Passivated Single Phase Bridge Rectifiers
GBPC3506A Glass Passivated Single Phase Bridge Rectifiers
GBPC3508A Glass Passivated Single Phase Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

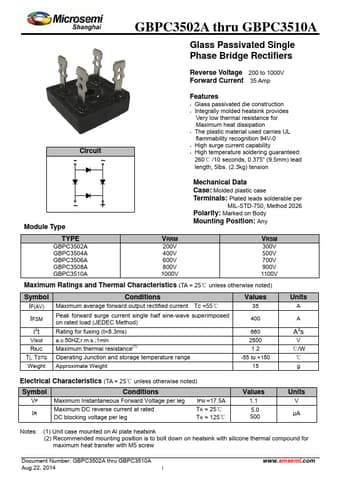

GBPC3502A thru GBPC3510A Glass Passivated Single Phase Bridge Rectifiers Reverse Voltage 200 to 1000V Forward Current 35 Amp Circuit - Features y Glass passivated die construction y Integrally molded heatsink provides Very low thermal resistance for Maximum heat dissipation y The plastic material used carries UL flammability recognition 94V-0 y High surge current capability y High temperature soldering guaranteed: 260℃ /10 seconds, 0.375” (9.5mm) lead length, 5lbs. (2.
