GBPC3504A, GBPC3502A Glass Passivated Single Phase Bridge Rectifiers

GBPC3504A Description

GBPC3502A thru GBPC3510A Glass Passivated Single Phase Bridge Rectifiers Reverse Voltage 200 to 1000V Forward Current 35 Amp Circuit - .

GBPC3504A Features

* y Glass passivated die construction y Integrally molded heatsink provides Very low thermal resistance for Maximum heat dissipation y The plastic material used carries UL flammability recognition 94V-0 y High surge current capability y High temperature soldering guaranteed: 260℃ /10 seconds, 0.375” (

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC3504A, GBPC3502A. Please refer to the document for exact specifications by model.

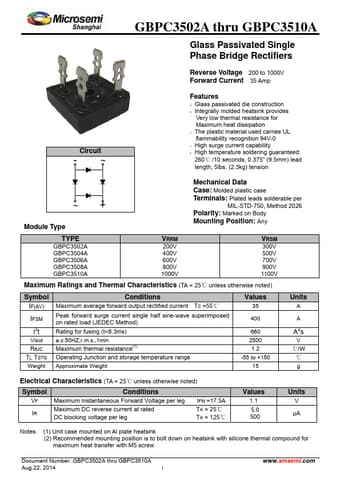

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC3504A, GBPC3502A
Manufacturer
Microsemi ↗
File Size
142.36 KB
Datasheet
GBPC3502A-Microsemi.pdf
Description
Glass Passivated Single Phase Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBPC3504A, GBPC3502A.
Please refer to the document for exact specifications by model.
