APT75DL60BG, APT75DL60B Ultrasoft Recovery Rectifi er Diode

APT75DL60BG Description

APT75DL60B(G) APT75DL60S(G) 600V 75A *G Denotes RoHS Compliant, Pb Free Terminal Finish.Ultrasoft Recovery Rectifier Diode PRODUCT APPLICATIONS .

APT75DL60BG Features

* Ultrasoft Recovery Times (trr)
* Popular TO-247 Package or Surface Mount D3PAK Package PRODUCT BENEFITS
* Soft Switching - High Qrr
* Low Noise Switching - Reduced Ringing
* Ultra Low Forward Voltage
* Higher Reliability Systems
* Low Lea

APT75DL60BG Applications

* Anti-Parallel Diode -Switchmode Power Supply -Inverters
* Applications - Induction Heating

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APT75DL60BG, APT75DL60B. Please refer to the document for exact specifications by model.

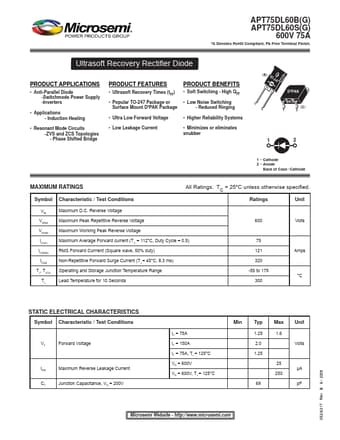

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APT75DL60BG, APT75DL60B
Manufacturer
Microsemi ↗
File Size
131.00 KB
Datasheet
APT75DL60B-Microsemi.pdf
Description
Ultrasoft Recovery Rectifi er Diode
Note
This datasheet PDF includes multiple part numbers: APT75DL60BG, APT75DL60B.
Please refer to the document for exact specifications by model.
