APT75DQ100B ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

APT75DQ100B Description

® 1000V 75A APT75DQ100B APT75DQ100S APT75DQ100BG * APT75DQ100SG * *G Denotes RoHS Compliant, Pb Free Terminal Finish.ULTRAFAST SOFT RECOV.

APT75DQ100B Features

* Ultrafast Recovery Times
* Soft Recovery Characteristics PRODUCT BENEFITS
* Low Losses
* Low Noise Switching 1 2 -2 4 7 D3PAK
* Cooler Operation
* Popular TO-247 Package or Surface Mount D3PAK Package
* Higher Reliability Systems

APT75DQ100B Applications

* Anti-Parallel Diode -Switchmode Power Supply -Inverters
* Free Wheeling Diode -Motor Controllers -Converters -Inverters
* Snubber Diode

📥 Download Datasheet

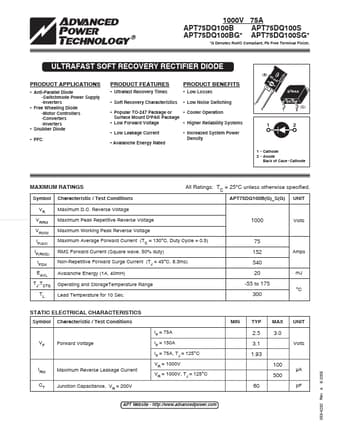

Preview of APT75DQ100B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APT75DQ100B
Manufacturer
Advanced Power Technology
File Size
158.28 KB
Datasheet
APT75DQ100B_AdvancedPowerTechnology.pdf
Description
ULTRAFAST SOFT RECOVERY RECTIFIER DIODE
