APT75DQ120B ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

APT75DQ120B Description

® 1200V 75A APT75DQ120B APT75DQ120S APT75DQ120BG * APT75DQ120SG * *G Denotes RoHS Compliant, Pb Free Terminal Finish.ULTRAFAST SOFT RECOV.

APT75DQ120B Features

* Ultrafast Recovery Times
* Soft Recovery Characteristics PRODUCT BENEFITS
* Low Losses
* Low Noise Switching 1 2 -2 4 7 D3PAK
* Cooler Operation
* Popular TO-247 Package or Surface Mount D3PAK Package
* Higher Reliability Systems

APT75DQ120B Applications

* Anti-Parallel Diode -Switchmode Power Supply -Inverters
* Free Wheeling Diode -Motor Controllers -Converters -Inverters
* Snubber Diode

📥 Download Datasheet

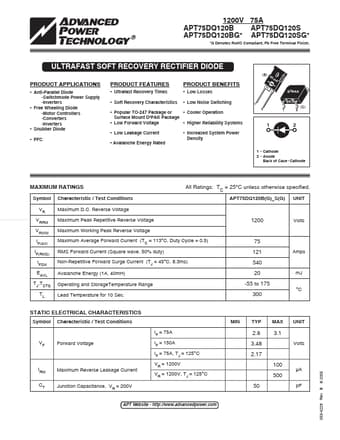

Preview of APT75DQ120B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APT75DQ120B
Manufacturer
Advanced Power Technology
File Size
158.59 KB
Datasheet
APT75DQ120B_AdvancedPowerTechnology.pdf
Description
ULTRAFAST SOFT RECOVERY RECTIFIER DIODE
