1N5711UR-1

The 1N5711UR-1 is Schottky Barrier Diode designed by Microsemi.

Product Overview

Microsemi

Part number	1N5711UR-1
Manufacturer	Microsemi
File Size	469.96 KB
Description	Schottky Barrier Diode
Datasheet	1N5711UR-1-Microsemi.pdf

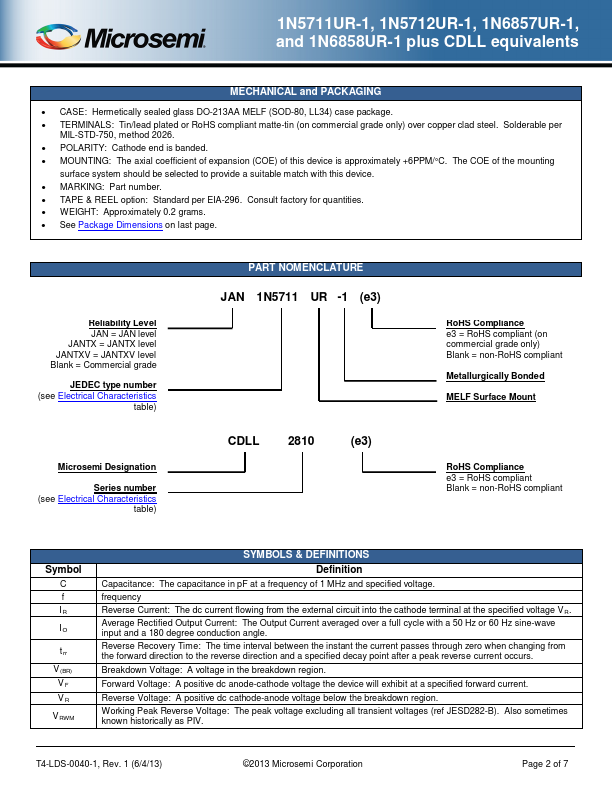

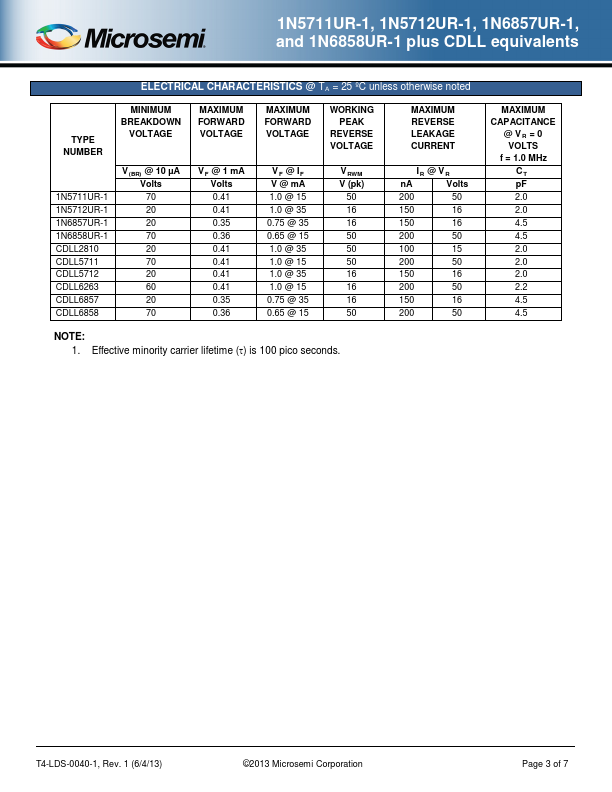

Additional preview pages of the 1N5711UR-1 datasheet.

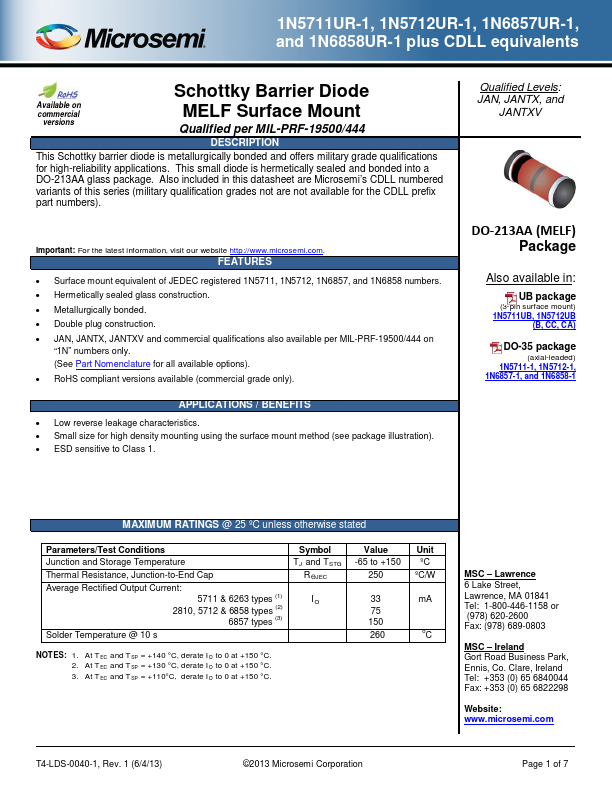

This Schottky barrier diode is metallurgically bonded and offers military grade qualifications for high-reliability applications.

Surface mount equivalent of JEDEC registered 1N5711, 1N5712, 1N6857, and 1N6858 numbers.
Hermetically sealed glass construction.
Metallurgically bonded.
Double plug construction.
JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
RoHS compliant versions available (commercial grade only).
