1N5712UBD, 1N5711UB SCHOTTKY BARRIER DIODES

Microsemi

Description

1N5711UB and 1N5712UB (CC, CA, & D) Schottky Barrier Diode Compliant Ceramic Surface Mount Qualified per MIL-PRF-19500/444 .
This 1N5711UB and 1N5712UB Schottky barrier diode is ceramic encased and offers military grade qualifications for high-reliability applications.

📥 Download Datasheet

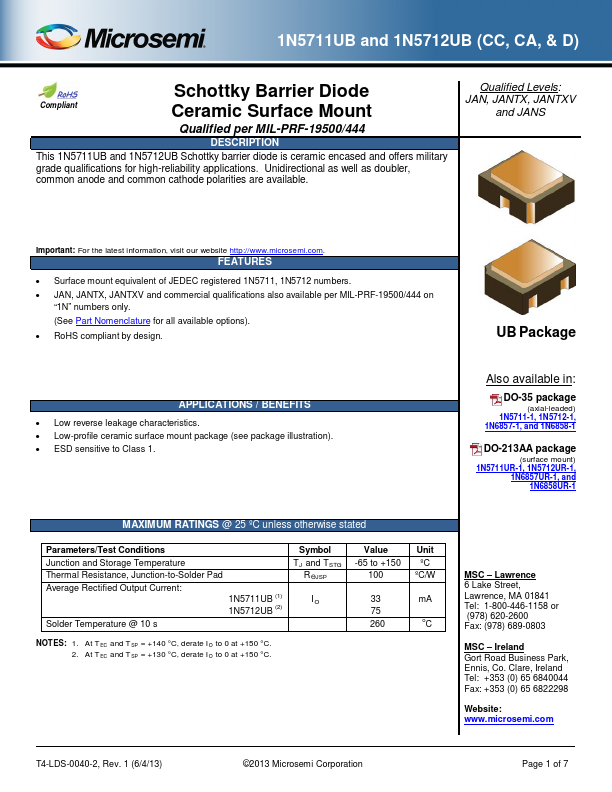

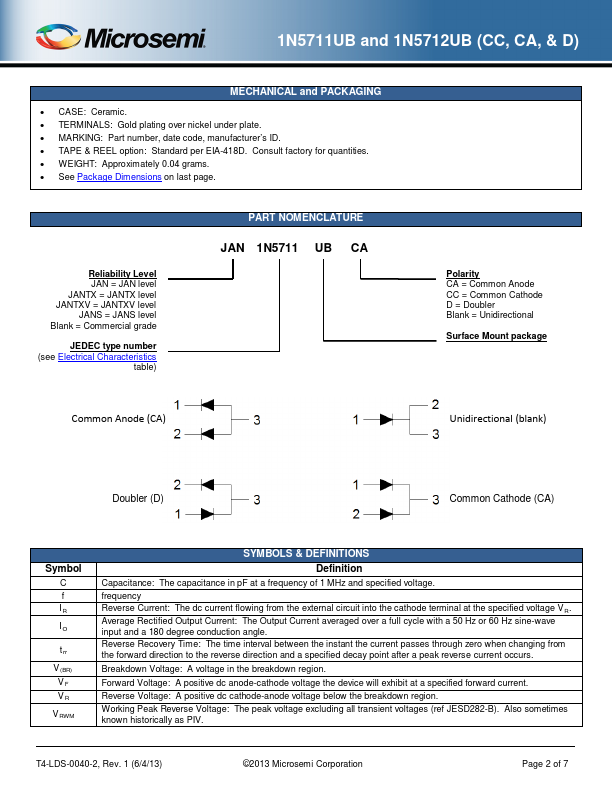

1N5712UBD Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5712UBD, 1N5711UB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N5712UBD, 1N5711UB
Manufacturer: Microsemi ↗
File Size: 509.22 KB
Datasheet: 1N5711UB-Microsemi.pdf
Description: SCHOTTKY BARRIER DIODES
Note: This datasheet PDF includes multiple part numbers: 1N5712UBD, 1N5711UB.
Please refer to the document for exact specifications by model.

Features

* Surface mount equivalent of JEDEC registered 1N5711, 1N5712 numbers.
* JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
* RoHS compliant by design. UB Package APP
