1N5712UBCA, 1N5711UB - SCHOTTKY BARRIER DIODES

1N5712UBCA Description

1N5711UB and 1N5712UB (CC, CA, & D) Schottky Barrier Diode Compliant Ceramic Surface Mount Qualified per MIL-PRF-19500/444 .
This 1N5711UB and 1N5712UB Schottky barrier diode is ceramic encased and offers military grade qualifications for high-reliability applications.

1N5712UBCA Features

* Surface mount equivalent of JEDEC registered 1N5711, 1N5712 numbers.
* JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
* RoHS compliant by design. UB Package APP

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5712UBCA, 1N5711UB. Please refer to the document for exact specifications by model.

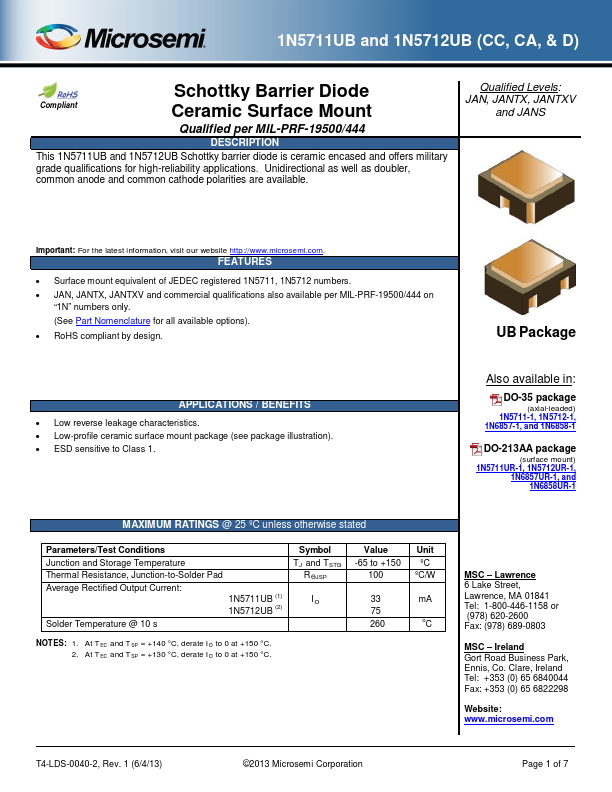

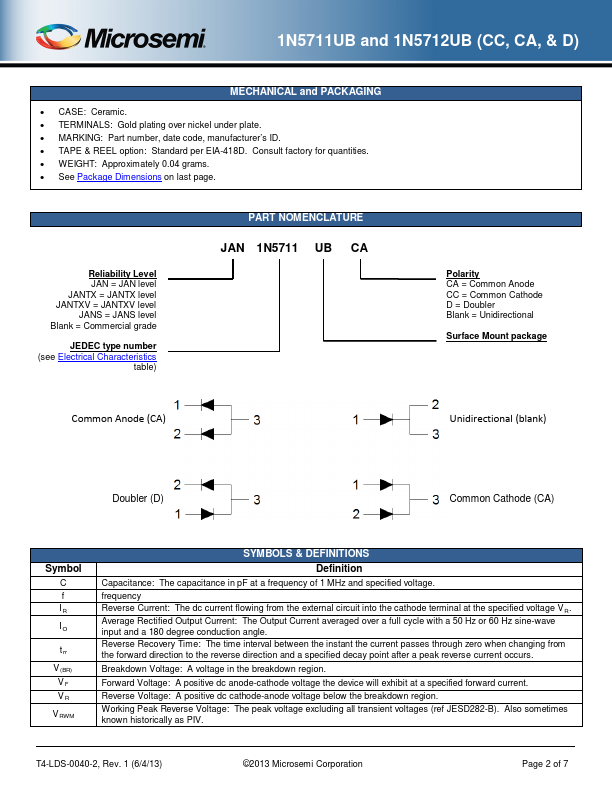

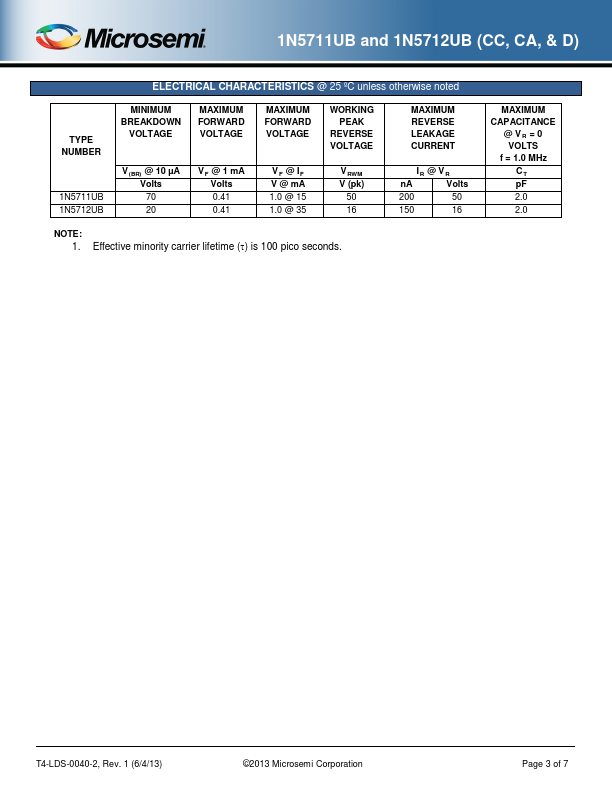

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5712UBCA, 1N5711UB
Manufacturer
Microsemi ↗
File Size
509.22 KB
Datasheet
1N5711UB-Microsemi.pdf
Description
SCHOTTKY BARRIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N5712UBCA, 1N5711UB.
Please refer to the document for exact specifications by model.
