ME8204 - Current Mode PWM Controller

Name: ME8204
SKU: ME8204-977829

Microne

The ME8204 by Microne is a Current Mode PWM Controller. Below is the official datasheet preview.

Datasheet Details

Part number	ME8204
Manufacturer	Microne
File Size	195.74 KB
Description	Current Mode PWM Controller
Datasheet	ME8204-Microne.pdf

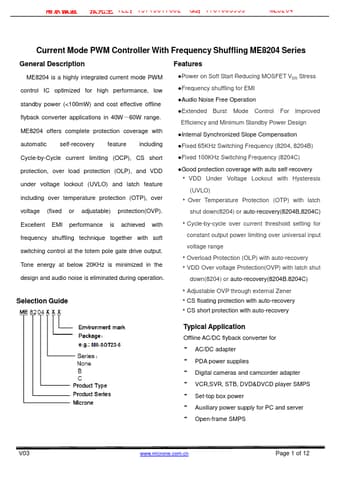

Additional preview pages of the ME8204 datasheet.

ME8204 is a highly integrated current mode PWM control IC optimized for high performance, low standby power (

Power on Soft Start Reducing MOSFET VDS Stress.
Frequency shuffling for EMI.
Audio Noise Free Operation.
Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design.
Internal Synchronized Slope Compensation.
Fixed 65KHz Switching Frequency (8204, 8204B).
Fixed 100KHz Switching Frequency (8204C).
Good protection coverage with auto self-recovery.
VDD Under Voltage Lockout with Hysteresis (UVLO).
Over Temperature Protection (OTP) w.
