ME8200 - Current Mode PWM Controller

Microne

The ME8200 by Microne is a Current Mode PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

ME8200 Current Mode PWM Controller by Microne - Datasheet Preview — Official preview page of the **ME8200** Current Mode PWM Controller datasheet (Microne).

Datasheet Details

Part number	ME8200
Manufacturer	Microne
File Size	589.85 KB
Description	Current Mode PWM Controller
Datasheet	ME8200-Microne.pdf

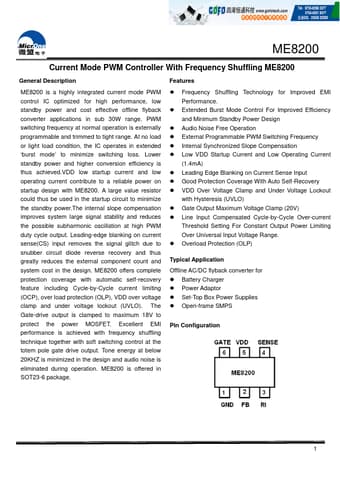

Additional preview pages of the ME8200 datasheet.

ME8200 Product details

Description

ME8200 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in sub 30W range.

Features

Frequency Shuffling Technology for Improved EMI Performance.
Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design.
Audio Noise Free Operation.
External Programmable PWM Switching Frequency.
Internal Synchronized Slope Compensation.
Low VDD Startup Current and Low Operating Current (1.4mA).
Leading Edge Blanking on Current Sense Input.
Good Protection Coverage With Auto Self-Recovery o.
VDD Over Voltage Clamp and Under.
