MT46V32M16 - Double Data Rate (DDR) SDRAM

Product Overview

Micron Technology

Part number	MT46V32M16
Manufacturer	Micron Technology
File Size	1.61 MB
Description	Double Data Rate (DDR) SDRAM
Datasheet	MT46V32M16 Datasheet
Note	This datasheet PDF includes multiple part numbers: MT46V32M16, MT46V128M4. Please refer to the document for exact specifications by model.

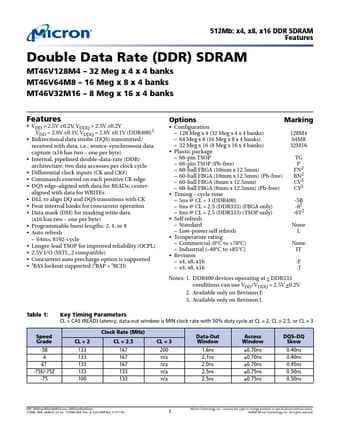

Additional preview pages of the MT46V32M16 datasheet.

. .5 Functional Block Diagrams .

Double Data Rate (DDR) SDRAM MT46V128M4.
32 Meg x 4 x 4 banks MT46V64M8.
16 Meg x 8 x 4 banks MT46V32M16.
8 Meg x 16 x 4 banks Features.
VDD = VDD 2.5V ±0.2V, VDDQ = = 2.6V ±0.1V, VDDQ 2.5V ±0.2V = 2.6V ±0.1V (DDR400)1.
Bidirectional data strobe (DQS) transmitted/ received with data, i. e. , source-synchronous data capture (x16 has two.
one per byte).
Internal, pipelined double-data-rate (DDR) architecture; two data accesses.
