MT46V16M8 - (MT46Vxxx) DOUBLE DATA RATE DDR SDRAM

Product Overview

Micron Technology

Datasheet Details

Part number	MT46V16M8
Manufacturer	Micron Technology
File Size	7.86 MB
Description	(MT46Vxxx) DOUBLE DATA RATE DDR SDRAM
Datasheet	MT46V16M8 Datasheet

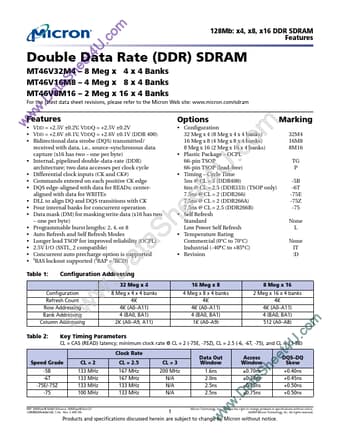

Additional preview pages of the MT46V16M8 datasheet.

Product details

Description

General Description The 128Mb DDR SDRAM is a high-speed CMOS, dynamic random-access memory containing 134,217,728 bits.It is internally configured as a quad-bank DRAM.The 128Mb DDR SDRAM uses a double data rate architecture to achieve high-speed operation.The double data rate architecture is essentially a 2n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins.A single read or write access for the 128Mb DDR SDRAM effectively consists of

Features

c . U 4 t Double Data Rate (DDR) SDRAM e e8 Meg x 4 x 4 Banks MT46V32M4h.
S.
4 Meg x 8 x 4 Banks MT46V16M8 a MT46V8M16 at.
2 Meg x 16 x 4 Banks . D w w Features Options Marking w For the latest data sheet revisions, please refer to the Micron Web site: www. micron. com/sdram.
VDD = +2.5V ±0.2V, VDDQ = +2.5V ±0.2V.
VDD = +2.6V ±0.1V, VDDQ = +2.6V ±0.1V (DDR 400).
Bidirectional data strobe (DQS) transmitted/ received with data, i. e. , source-synch.
