MIC24052 - High-Efficiency Buck Regulator

Name: MIC24052
SKU: MIC24052-1095297

Microchip

The MIC24052 by Microchip is a High-Efficiency Buck Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	MIC24052
Manufacturer	Microchip
File Size	1.19 MB
Description	High-Efficiency Buck Regulator
Datasheet	MIC24052-Microchip.pdf

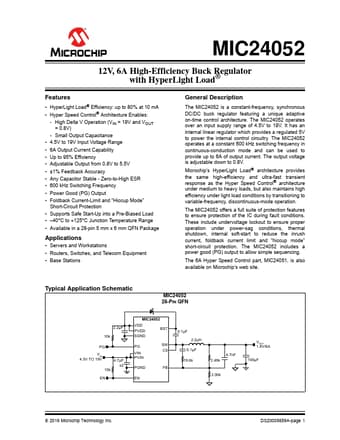

Additional preview pages of the MIC24052 datasheet.

The MIC24052 is a constant-frequency, synchronous DC/DC buck regulator featuring a unique adaptive on-time control archite

HyperLight Load® Efficiency: up to 80% at 10 mA.
Hyper Speed Control® Architecture Enables: - High Delta V Operation (VIN = 19V and VOUT = 0.8V) - Small Output Capacitance.
4.5V to 19V Input Voltage Range.
6A Output Current Capability.
Up to 95% Efficiency.
Adjustable Output from 0.8V to 5.5V.
±1% Feedback Accuracy.
Any Capacitor Stable - Zero-to-High ESR.
600 kHz Switching Frequency.
Power Good (PG) Outpu.
