MIC24056 - 12A High-Efficiency Buck Regulator

Name: MIC24056
SKU: MIC24056-1082910

Micrel Semiconductor

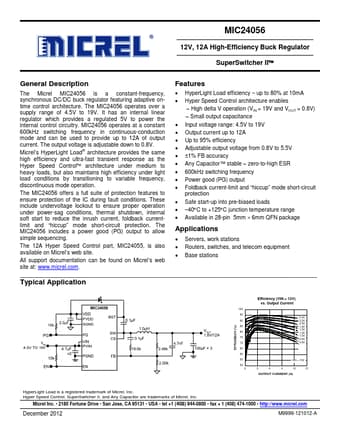

The MIC24056 by Micrel Semiconductor is a 12A High-Efficiency Buck Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	MIC24056
Manufacturer	Micrel Semiconductor
File Size	1.57 MB
Description	12A High-Efficiency Buck Regulator
Datasheet	MIC24056-MicrelSemiconductor.pdf
Additional preview pages of the MIC24056 datasheet.

The Micrel MIC24056 is a constant-frequency, synchronous DC/DC buck regulator featuring adaptive ontime control architecture. The MIC24056 operates over a supply range of 4.5V to 19V. It has an internal linear regulator which provides a regulated 5V to power the internal control circuitry. MIC24056 operates at a constant 600kHz switching frequency in continuous-conduction mode and can be used to provide up to 12A of output current. The output voltage is adjustable down to 0.8V. Micrel’s HyperLi.
