HV2607 High-Voltage Analog Switch

HV2607 Description

HV2607/HV2707/HV2708 No High-Voltage Bias, Low Harmonic Distortion, 16-Channel, High-Voltage Analog Switch .
HV2607/HV2707/HV2708 devices are low harmonic distortion, low charge injection, 16-channel, highvoltage analog switches without high-voltage supplies.

HV2607 Features

* 16-Channel High-Voltage Analog Switch
* Analog Signal Voltage Up to ±100V
* Only +5V Bias Supply Required
* 3.3V and 5V CMOS Input Logic Level
* 66 MHz Data Shift Clock Frequency
* Ultra-Low Quiescent Current < 10 µA
* Low Parasitic Capacitan

HV2607 Applications

* requiring high-voltage switching controlled by low-voltage control signals, such as medical ultrasound imaging, driving piezoelectric transducers and printers. The HV2707 has integrated bleed resistors at both sides of the switches. The HV2708 has integrated bleed resistors at the SWA side only. The

📥 Download Datasheet

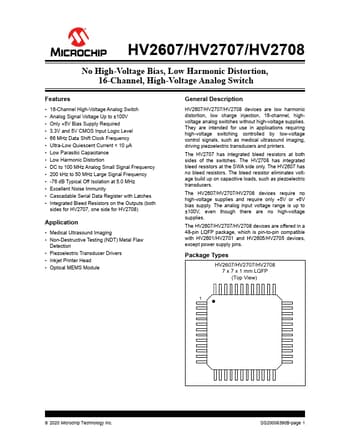

Preview of HV2607 PDF
