MIC4451 - 12A-Peak Low-Side MOSFET Driver / Bipolar/CMOS/DMOS Process

Name: MIC4451
SKU: MIC4451-1250033

Micrel

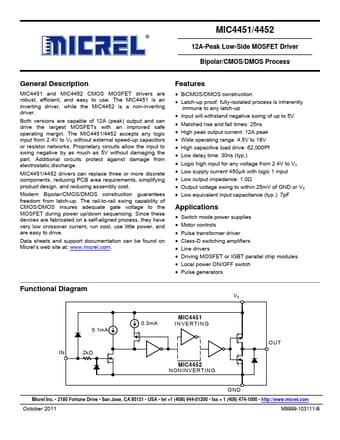

The MIC4451 by Micrel is a 12A-Peak Low-Side MOSFET Driver / Bipolar/CMOS/DMOS Process. Below is the official datasheet preview.

Datasheet Details

Part number	MIC4451
Manufacturer	Micrel
File Size	567.72 KB
Description	12A-Peak Low-Side MOSFET Driver / Bipolar/CMOS/DMOS Process
Datasheet	MIC4451-Micrel.pdf
Additional preview pages of the MIC4451 datasheet.

MIC4451 and MIC4452 CMOS MOSFET drivers are robust, efficient, and easy to use. The MIC4451 is an inverting driver, while the MIC4452 is a non-inverting driver. Both versions are capable of 12A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4451/4452 accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Ad.
