MIC4423 - Dual 3A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process

Description

The MIC4423/4424/4425 family are highly reliable BiCMOS/ DMOS buffer/driver/MOSFET drivers.

They are higher output current versions of the MIC4426/4427/4428, which are improved versions of the MIC426/427/428.

All three families are pin-compatible.

📥 Download Datasheet

Datasheet Details

Part number MIC4423
Manufacturer Micrel Semiconductor
File Size 213.79 KB
Description Dual 3A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process
Datasheet download datasheet MIC4423 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC4423 Dual 3A Peak Low-Side MOSFET Drivers Microchip
MIC4424 Dual 3A Peak Low-Side MOSFET Drivers Microchip
MIC4425 Dual 3A Peak Low-Side MOSFET Drivers Microchip
MIC4426 Dual 1.5A-Peak Low-Side MOSFET Drivers Microchip
MIC4427 Dual 1.5A-Peak Low-Side MOSFET Drivers Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC4420 6A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process
MIC4421 9A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process
MIC4421A 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process
MIC4422 9A-Peak Low-Side MOSFET Driver
MIC4422A 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

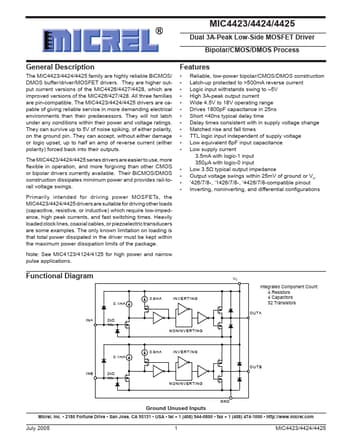

MIC4423/4424/4425 Micrel, Inc. MIC4423/4424/4425 Dual 3A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process General Description The MIC4423/4424/4425 family are highly reliable BiCMOS/ DMOS buffer/driver/MOSFET drivers. They are higher output current versions of the MIC4426/4427/4428, which are improved versions of the MIC426/427/428. All three families are pin-compatible. The MIC4423/4424/4425 drivers are capable of giving reliable service in more demanding electrical environments than their predecessors. They will not latch under any conditions within their power and voltage ratings. They can survive up to 5V of noise spiking, of either polarity, on the ground pin.
