MIC4422A, MIC4421A - 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process

Name: MIC4422A
SKU: MIC4422A-1265820

Micrel Semiconductor

The MIC4422A by Micrel Semiconductor is a 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process. Below is the official datasheet preview.

📥 Download Datasheet

MIC4422A 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC4422A** 9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC4422A, MIC4421A
Manufacturer	Micrel Semiconductor
File Size	346.18 KB
Description	9A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process
Datasheet	MIC4421A-MicrelSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MIC4422A, MIC4421A. Please refer to the document for exact specifications by model.

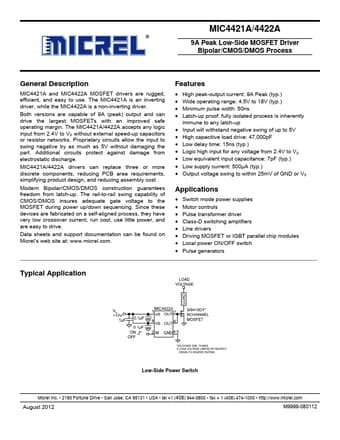

Additional preview pages of the MIC4422A datasheet.

MIC4422A Product details

Features

MIC4421A and MIC4422A MOSFET drivers are rugged, efficient, and easy to use. The MIC4421A is an inverting driver, while the MIC4422A is a non-inverting driver. Both versions are capable of 9A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4421A/4422A accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Ad.
