MIC2777 - Dual Micro-Power Low Voltage Supervisor

Micrel Semiconductor

The MIC2777 by Micrel Semiconductor is a Dual Micro-Power Low Voltage Supervisor. Below is the official datasheet preview.

📥 Download Datasheet

MIC2777 Dual Micro-Power Low Voltage Supervisor by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2777** Dual Micro-Power Low Voltage Supervisor datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2777
Manufacturer	Micrel Semiconductor
File Size	164.79 KB
Description	Dual Micro-Power Low Voltage Supervisor
Datasheet	MIC2777-MicrelSemiconductor.pdf

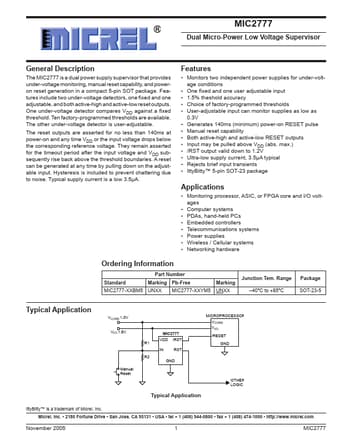

Additional preview pages of the MIC2777 datasheet.

MIC2777 Product details

Description

The MIC2777 is a dual power supply supervisor that provides under-voltage monitoring, manual reset capability, and poweron reset generation in a compact 5-pin SOT package.

Features

include two under-voltage detectors, one ﬁxed and one adjustable, and both active-high and active-low reset outputs. One under-voltage detector compares VDD against a ﬁxed threshold. Ten factory-programmed thresholds are available. The other under-voltage detector is user-adjustable. The reset outputs are asserted for no less than 140ms at power-on and any time VDD or the input voltage drops below the corresponding reference voltage. They remain asserted for the timeout period after the input vo.
