MIC2776 - Micro-Power Low Voltage Supervisor

Micrel Semiconductor

The MIC2776 by Micrel Semiconductor is a Micro-Power Low Voltage Supervisor. Below is the official datasheet preview.

Datasheet Details

Part number	MIC2776
Manufacturer	Micrel Semiconductor
File Size	378.39 KB
Description	Micro-Power Low Voltage Supervisor
Datasheet	MIC2776-MicrelSemiconductor.pdf

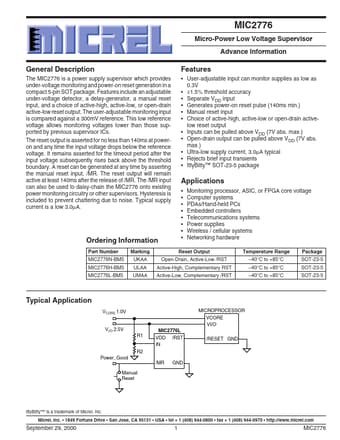

Additional preview pages of the MIC2776 datasheet.

The MIC2776 is a power supply supervisor which provides under-voltage monitoring and power-on reset generation in a compact 5-pin SOT package.

include an adjustable under-voltage detector, a delay-generator, a manual reset input, and a choice of active-high, active-low, or open-drain active-low reset output. The user-adjustable monitoring input is compared against a 300mV reference. This low reference voltage allows monitoring voltages lower than those supported by previous supervisor ICs. The reset output is asserted for no less than 140ms at poweron and any time the input voltage drops below the reference voltage. It remains asserted.
