MIC2774 - Dual Micro-Power Low Voltage Supervisor

Micrel Semiconductor

The MIC2774 by Micrel Semiconductor is a Dual Micro-Power Low Voltage Supervisor. Below is the official datasheet preview.

📥 Download Datasheet

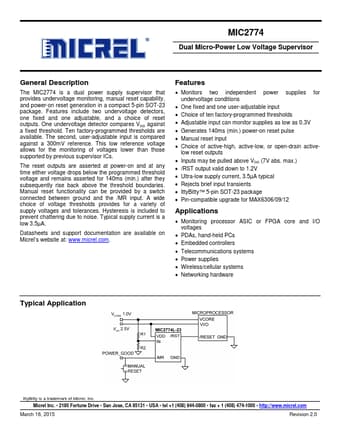

MIC2774 Dual Micro-Power Low Voltage Supervisor by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2774** Dual Micro-Power Low Voltage Supervisor datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2774
Manufacturer	Micrel Semiconductor
File Size	430.72 KB
Description	Dual Micro-Power Low Voltage Supervisor
Datasheet	MIC2774-MicrelSemiconductor.pdf
Additional preview pages of the MIC2774 datasheet.

MIC2774 Product details

Description

The MIC2774 is a dual power supply supervisor that provides undervoltage monitoring, manual reset capability, and power-on reset generation in a compact 5-pin SOT-23 package.

Features

include two undervoltage detectors, one fixed and one adjustable, and a choice of reset outputs. One undervoltage detector compares VDD against a fixed threshold. Ten factory-programmed thresholds are available. The second, user-adjustable input is compared against a 300mV reference. This low reference voltage allows for the monitoring of voltages lower than those supported by previous supervisor ICs. The reset outputs are asserted at power-on and at any time either voltage drops below the progr.
