MIC2545A - Programmable Current Limit High-Side Switch

Micrel Semiconductor

The MIC2545A by Micrel Semiconductor is a Programmable Current Limit High-Side Switch. Below is the official datasheet preview.

📥 Download Datasheet

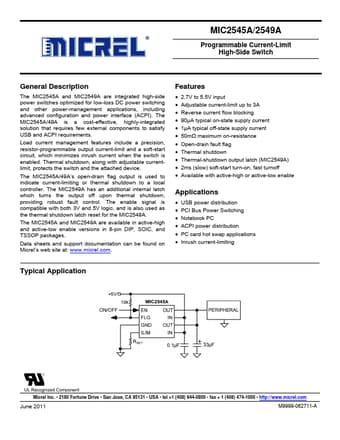

MIC2545A Programmable Current Limit High-Side Switch by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2545A** Programmable Current Limit High-Side Switch datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2545A
Manufacturer	Micrel Semiconductor
File Size	663.13 KB
Description	Programmable Current Limit High-Side Switch
Datasheet	MIC2545A-MicrelSemiconductor.pdf
Additional preview pages of the MIC2545A datasheet.

MIC2545A Product details

Description

The MIC2545A and MIC2549A are integrated high-side power switches optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI).

Features

include a precision, resistor-programmable output current-limit and a soft-start circuit, which minimizes inrush current when the switch is enabled. Thermal shutdown, along with adjustable currentlimit, protects the switch and the attached device. The MIC2545A/49A’s open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The MIC2549A has an additional internal latch which turns the output off upon thermal shutdown, providing robust fault control. Th.
