MIC2544A - Programmable Current Limit High-Side Switch

Micrel Semiconductor

The MIC2544A by Micrel Semiconductor is a Programmable Current Limit High-Side Switch. Below is the official datasheet preview.

📥 Download Datasheet

MIC2544A Programmable Current Limit High-Side Switch by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2544A** Programmable Current Limit High-Side Switch datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2544A
Manufacturer	Micrel Semiconductor
File Size	0.96 MB
Description	Programmable Current Limit High-Side Switch
Datasheet	MIC2544A-MicrelSemiconductor.pdf

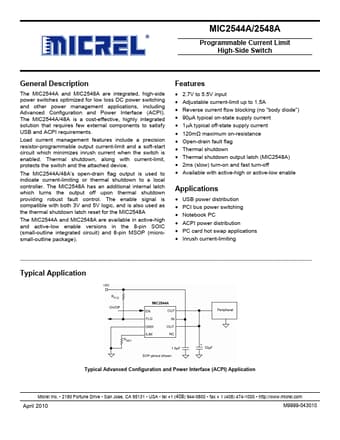

Additional preview pages of the MIC2544A datasheet.

MIC2544A Product details

Description

The MIC2544A and MIC2548A are integrated, high-side power switches optimized for low loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI).

Features

include a precision resistor-programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2544A/48A’s open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The MIC2548A has an additional internal latch which turns the output off upon thermal shutdown providing robust fault control. The enable sign.
