MIC2548 - Programmable Current Limit High-Side Switch

Download the MIC2548 datasheet PDF. This datasheet also covers the MIC2544 variant, as both devices belong to the same programmable current limit high-side switch family and are provided as variant models within a single manufacturer datasheet.

Description

The MIC2544 and MIC2548 are integrated high-side power switches optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI).

Features

  • include a precision resistor-programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2544/48’s open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The MIC2548 has an additional internal latch which turns the output off upon thermal shutdown providing robust fault control. The enable si.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MIC2544-MicrelSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MIC2548
Manufacturer Micrel Semiconductor
File Size 470.84 KB
Description Programmable Current Limit High-Side Switch
Datasheet download datasheet MIC2548 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC2548 Programmable Current-Limit High-Side Switch Microchip
MIC2544 Programmable Current-Limit High-Side Switch Microchip
MIC2505 Single 2A/Dual 1A High-Side Switches Microchip
MIC2506 Single 2A/Dual 1A High-Side Switches Microchip
MIC2536 Dual USB Power Distribution Switch Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC2548A Programmable Current Limit High-Side Switch
MIC2544 Programmable Current Limit High-Side Switch
MIC2544A Programmable Current Limit High-Side Switch
MIC2545A Programmable Current Limit High-Side Switch
MIC2546 Dual Programmable Current Limit Switch

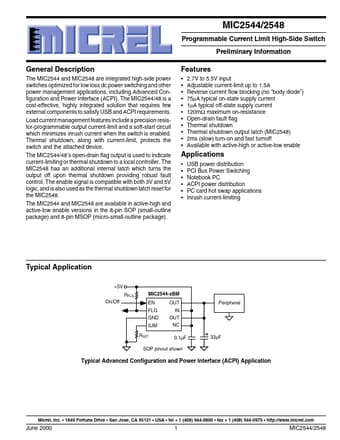

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MIC2544/2548 Micrel MIC2544/2548 Programmable Current Limit High-Side Switch Preliminary Information General Description The MIC2544 and MIC2548 are integrated high-side power switches optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544/48 is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision resistor-programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device.
