MAX9482 - Low-Power / Low-Distortion / Central-Office ADSL Drivers and Integrated Drivers/Receivers

Maxim

The MAX9482 by Maxim is a Low-Power / Low-Distortion / Central-Office ADSL Drivers and Integrated Drivers/Receivers. Below is the official datasheet preview.

📥 Download Datasheet

MAX9482 Low-Power / Low-Distortion / Central-Office ADSL Drivers and Integrated Drivers/Receivers by Maxim - Datasheet Preview — Official preview page of the **MAX9482** Low-Power / Low-Distortion / Central-Office ADSL Drivers and Integrated Drivers/Receivers datasheet (Maxim).

Datasheet Details

Part number	MAX9482
Manufacturer	Maxim
File Size	513.91 KB
Description	Low-Power / Low-Distortion / Central-Office ADSL Drivers and Integrated Drivers/Receivers
Datasheet	MAX9482_MaximIntegratedProducts.pdf

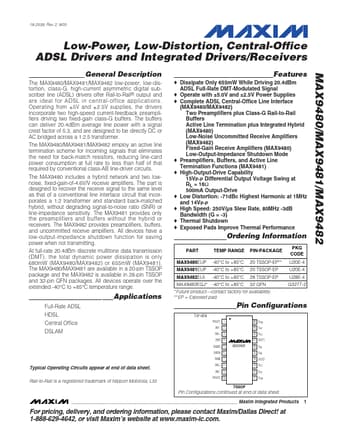

Additional preview pages of the MAX9482 datasheet.

MAX9482 Product details

Description

The MAX9480/MAX9481/MAX9482 low-power, low-distortion, class-G, high-current asymmetric digital subscriber line (ADSL) drivers offer Rail-to-Rail® output and are ideal for ADSL in central-office applications.

Features

o Dissipate Only 655mW While Driving 20.4dBm ADSL Full-Rate DMT-Modulated Signal o Operate with ±5.0V and ±2.5V Power Supplies o Complete ADSL Central-Office Line Interface (MAX9480/MAX9482) Two Preamplifiers plus Class-G Rail-to-Rail Buffers Active Line Termination plus Integrated Hybrid (MAX9480) Low-Noise Uncommitted Receive Amplifiers (MAX9482) Fixed-Gain Receive Amplifiers (MAX9480) Low-Output-Impedance Shutdown Mode o Preamplifiers, Buffers, and Active Line Termination Functions (MAX9481).
