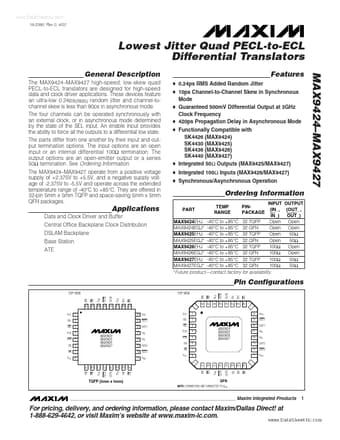

Additional preview pages of the MAX9424 datasheet.

MAX9424 Product details

Description

The MAX9424 MAX9427 high-speed, low-skew quad PECL-to-ECL translators are designed for high-speed data and clock driver applications.

Features

MAX9424.
MAX9427 Ordering Information INPUT OUTPUT (IN_, (OUT_, OUT_) IN_) MAX9424EHJ -40°C to +85°C 32 TQFP Open Open MAX9424EGJ.
-40°C to +85°C 32 QFN Open Open MAX9425EHJ -40°C to +85°C 32 TQFP Open 50Ω MAX9425EGJ.
-40°C to +85°C 32 QFN Open 50Ω MAX9426EHJ -40°C to +85°C 32 TQFP 100Ω Open MAX9426EGJ.
-40°C to +85°C 32 QFN 100Ω Open MAX9427EHJ -40°C to +85°C 32 TQFP 100Ω 50Ω MAX9427EGJ.
-40°C to +85°C 32 QFN 100Ω 50Ω.
Future product.
contact factory for avai.
