MAX876 - Low-Power / Low-Drift / +2.5V/+5V/+10V Precision Voltage References

Product Overview

Maxim

Datasheet Details

Part number	MAX876
Manufacturer	Maxim
File Size	370.61 KB
Description	Low-Power / Low-Drift / +2.5V/+5V/+10V Precision Voltage References
Datasheet	MAX876 Datasheet

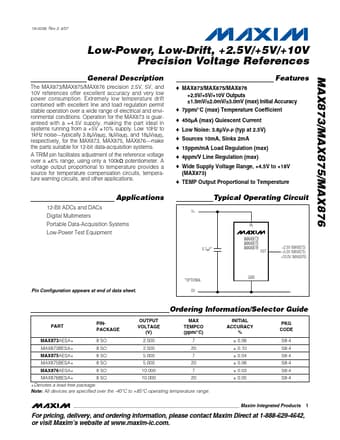

Additional preview pages of the MAX876 datasheet.

Product details

Description

The MAX873/MAX875/MAX876 precision 2.5V, 5V, and 10V references offer excellent accuracy and very low power consumption. typically 3.8µVRMS, 9µVRMS, and 18µVRMS, respectively, f

Features

MAX873/MAX875/MAX876 +2.5V/+5V/+10V Outputs ±1.5mV/±2.0mV/±3.0mV (max) Initial Accuracy.
7ppm/°C (max) Temperature Coefficient.
450µA (max) Quiescent Current.
Low Noise: 3.8µVP-P (typ at 2.5V).
Sources 10mA, Sinks 2mA.
15ppm/mA Load Regulation (max).
4ppm/V Line Regulation (max).
Wide Supply Voltage Range, +4.5V to +18V (MAX873).
TEMP Output Proportional to Temperature.
