MAX8764 - Step-Down Controller

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX8764
Manufacturer	Maxim Integrated
File Size	591.62 KB
Description	Step-Down Controller
Datasheet	MAX8764 Datasheet

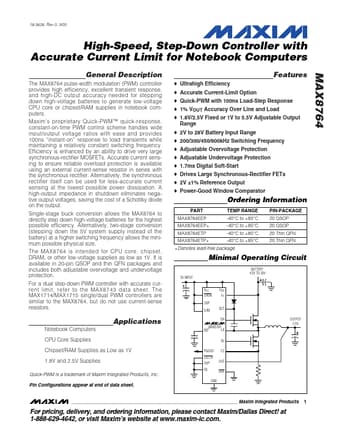

Additional preview pages of the MAX8764 datasheet.

Product details

Description

The MAX8764 pulse-width modulation (PWM) controller provides high efficiency, excellent transient response, and high-DC output accuracy needed for stepping down high-voltage batteries to generate low-voltage CPU core or chipset/RAM supplies in notebook computers.

Features

Ultrahigh Efficiency.
Accurate Current-Limit Option.
Quick-PWM with 100ns Load-Step Response.
1% VOUT Accuracy Over Line and Load.
1.8V/2.5V Fixed or 1V to 5.5V Adjustable Output Range.
2V to 28V Battery Input Range.
200/300/450/600kHz Switching Frequency.
Adjustable Overvoltage Protection.
Adjustable Undervoltage Protection.
1.7ms Digital Soft-Start.
Drives Large Synchronous-Rectifier FETs.
