MAX809T - 3-Pin Microprocessor Reset Circuits

Name: MAX809T
SKU: MAX809T-440719

Maxim

The MAX809T by Maxim is a 3-Pin Microprocessor Reset Circuits. Below is the official datasheet preview.

Datasheet Details

Part number	MAX809T
Manufacturer	Maxim
File Size	136.66 KB
Description	3-Pin Microprocessor Reset Circuits
Datasheet	MAX809T_MaximIntegratedProducts.pdf

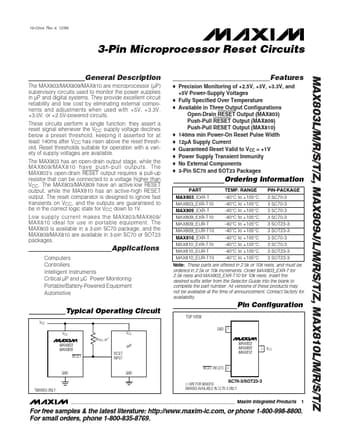

Additional preview pages of the MAX809T datasheet.

The MAX803/MAX809/MAX810 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems.

o Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages o Fully Specified Over Temperature o Available in Three Output Configurations Open-Drain RESET Output (MAX803) Push-Pull RESET Output (MAX809) Push-Pull RESET Output (MAX810) o 140ms min Power-On Reset Pulse Width o 12µA Supply Current o Guaranteed Reset Valid to VCC = +1V o Power Supply Transient Immunity o No External Components o 3-Pin SC70 and SOT23 Packages MAX803L/M/R/S/T/Z, MAX809J/L/M/R/S/T/Z, MAX810L/M/R/S/T/Z.
