MAX801N, MAX801L - 8-Pin uP Supervisory Circuits

Maxim Integrated Products

The MAX801N by Maxim Integrated Products is a 8-Pin uP Supervisory Circuits. Below is the official datasheet preview.

📥 Download Datasheet

MAX801N 8-Pin uP Supervisory Circuits by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX801N** 8-Pin uP Supervisory Circuits datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX801N, MAX801L
Manufacturer	Maxim Integrated Products
File Size	137.32 KB
Description	8-Pin uP Supervisory Circuits
Datasheet	MAX801L_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX801N, MAX801L. Please refer to the document for exact specifications by model.

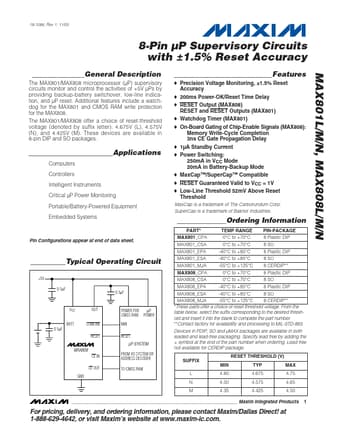

Additional preview pages of the MAX801N datasheet.

MAX801N Product details

Description

The MAX801/MAX808 microprocessor (µP) supervisory circuits monitor and control the activities of +5V µPs by providing backup-battery switchover, low-line indication, and µP reset.

Features

include a watchdog for the MAX801 and CMOS RAM write protection for the MAX808. The MAX801/MAX808 offer a choice of reset-threshold voltage (denoted by suffix letter): 4.675V (L), 4.575V (N), and 4.425V (M). These devices are available in 8-pin DIP and SO packages. ________________________.
