MAX805L, MAX692A - Microprocessor Supervisory Circuits

Maxim Integrated Products

The MAX805L by Maxim Integrated Products is a Microprocessor Supervisory Circuits. Below is the official datasheet preview.

📥 Download Datasheet

MAX805L Microprocessor Supervisory Circuits by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX805L** Microprocessor Supervisory Circuits datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX805L, MAX692A
Manufacturer	Maxim Integrated Products
File Size	436.60 KB
Description	Microprocessor Supervisory Circuits
Datasheet	MAX692A_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX805L, MAX692A. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX805L datasheet.

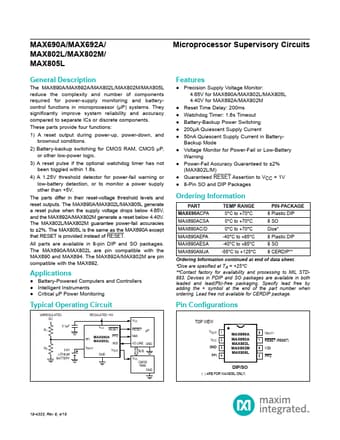

MAX805L Product details

Description

The MAX690A/MAX692A/MAX802L/MAX802M/MAX805L reduce the complexity and number of components required for power-supply monitoring and batterycontrol functions in microprocessor (μP) systems.

Features

Precision Supply Voltage Monitor: 4.65V for MAX690A/MAX802L/MAX805L 4.40V for MAX692A/MAX802M.
Reset Time Delay: 200ms.
Watchdog Timer: 1.6s Timeout.
Battery-Backup Power Switching.
200μA Quiescent Supply Current.
50nA Quiescent Supply Current in BatteryBackup Mode.
Voltage Monitor for Power-Fail or Low-Battery Warning.
Power-Fail Accuracy Guaranteed to ±2% (MAX802L/M).
Guaranteed RESET Assertion to VC.
