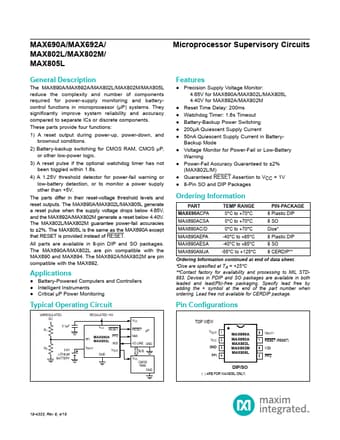

MAX802L Product details

Description

The MAX690A/MAX692A/MAX802L/MAX802M/MAX805L reduce the complexity and number of components required for power-supply monitoring and batterycontrol functions in microprocessor (μP) systems.

Features

Precision Supply Voltage Monitor: 4.65V for MAX690A/MAX802L/MAX805L 4.40V for MAX692A/MAX802M.
Reset Time Delay: 200ms.
Watchdog Timer: 1.6s Timeout.
Battery-Backup Power Switching.
200μA Quiescent Supply Current.
50nA Quiescent Supply Current in BatteryBackup Mode.
Voltage Monitor for Power-Fail or Low-Battery Warning.
Power-Fail Accuracy Guaranteed to ±2% (MAX802L/M).
Guaranteed RESET Assertion to VCC =.
